| Mechanical |
|---|
| Dimensions |
98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Weight |
302 g (10.7 oz) |
| Enclosure material |
Polycarbonate |
| Hardware |
|---|
| Management interface |
Ethernet
Bluetooth |

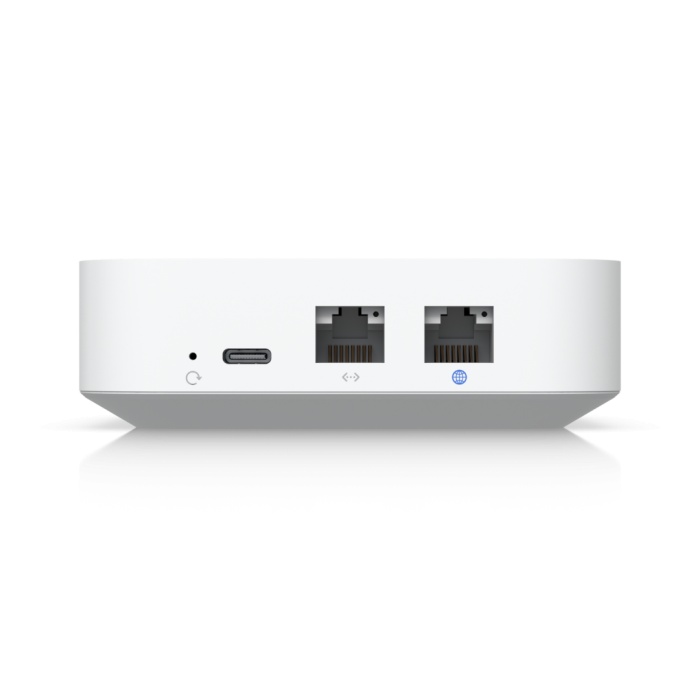

| Networking interface |
LAN:
(1) GbE RJ45 port
WAN:
(1) GbE RJ45 port |
| Power method |
USB type C (5V DC/3A) |
| Max. power consumption |
10W |
Max. TX power
2.4 GHz
5 GHz |
22 dBm
25 dBm |
MIMO
2.4 GHz
5 GHz |
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO) |
Throughput rate
2.4 GHz
5 GHz |
573.5 Mbps
2.4 Gbps |
Antenna gain
2.4 GHz
5 GHz |
4 dBi
5.15 dBi |
| Antennas |
(2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna |

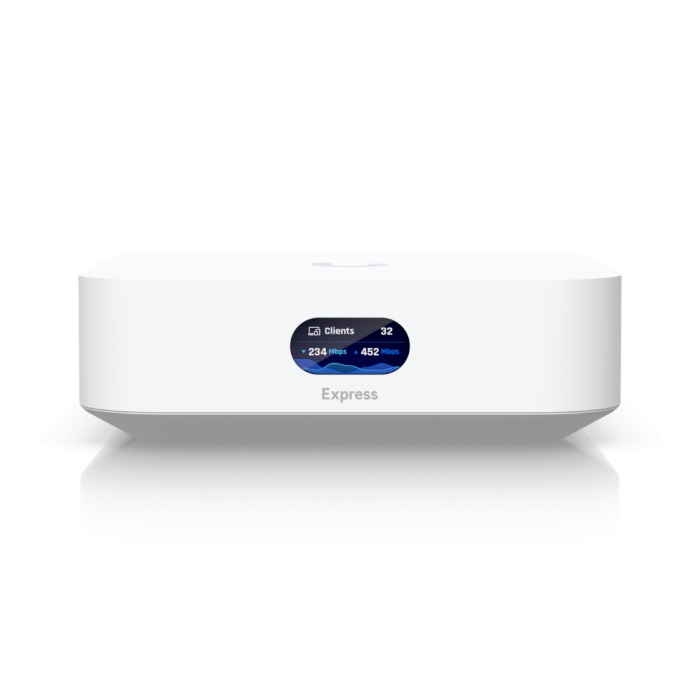

| LCM display |
0.96" status display |
| Button |
Factory reset |
| Ambient operating temperature |
-10 to 45° C (14 to 113° F) |
| Ambient operating humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
| Gateway Features |
|---|
| Performance |
Internet quality and outage reporting |
| Next-generation security |
Application-aware firewall rules
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall |
| Advanced networking |
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support |
| Software |
|---|
| WiFi standards |
802.11a/b/g/n/ac/ax |
| Wireless security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID |
Console mode: 3 per band
Standard AP: 8 per band |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
50+*
*Performance may be degraded with advanced gateway features (e.g., Traffic Identification). |
| Supported Data Rates |
|---|
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Application Requirements |
|---|
| UniFi Network |
Version 8.0.7 and later |
